Groove Panels

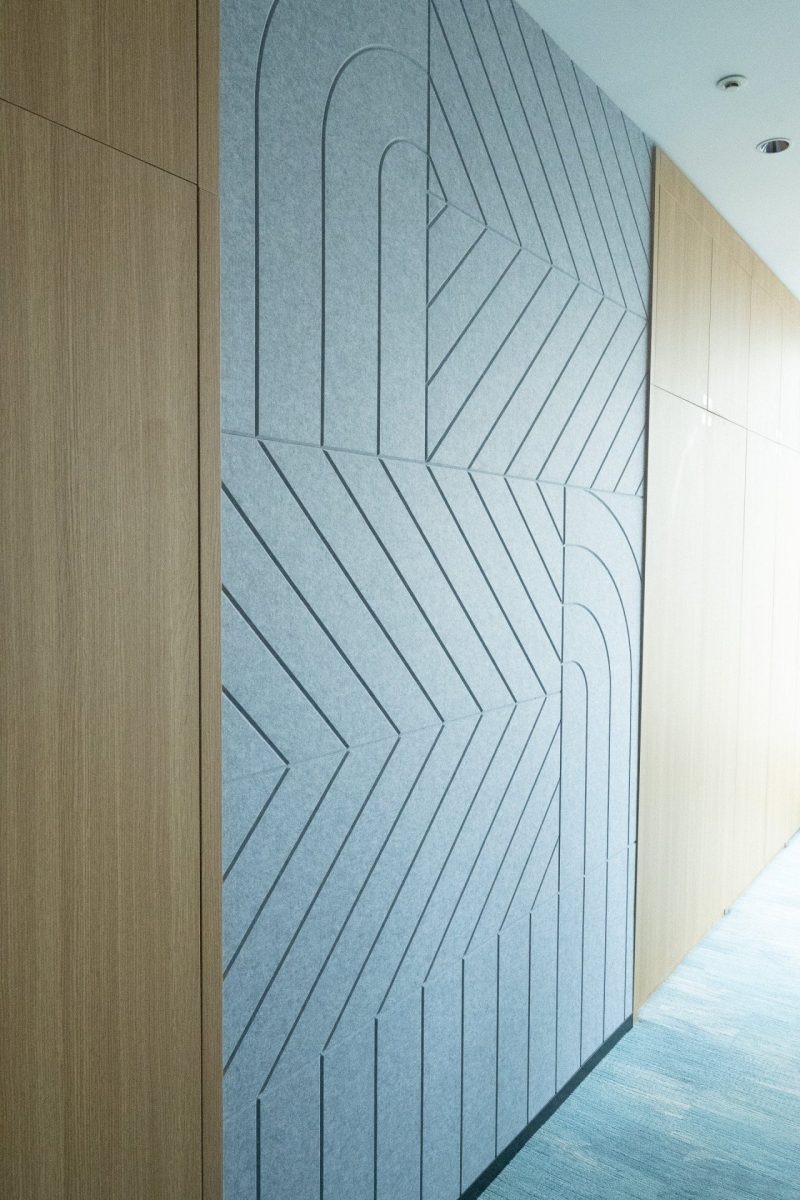

Groove Panels combine acoustic performance with refined linear patterns, creating textured wall and ceiling surfaces that enhance both sound comfort and interior aesthetics. Available in a variety of groove designs, they provide a modern and customizable solution for offices, hospitality venues and educational environments while adding depth and architectural character to any space.

Applications

• Offices
• Meeting Rooms
• Hotels
• Restaurants
• Educational Spaces
• Commercial Interiors

Asanoha

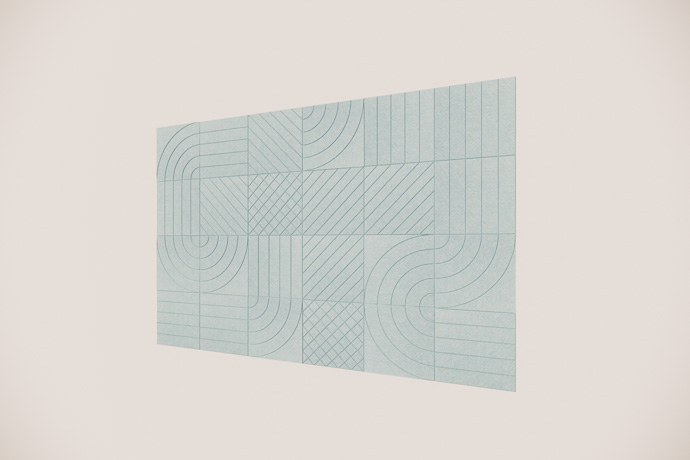

Circuit

Bridges

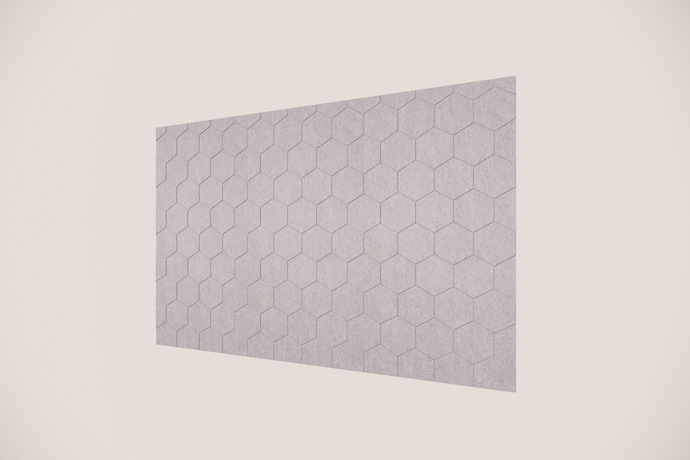

Honeycomb

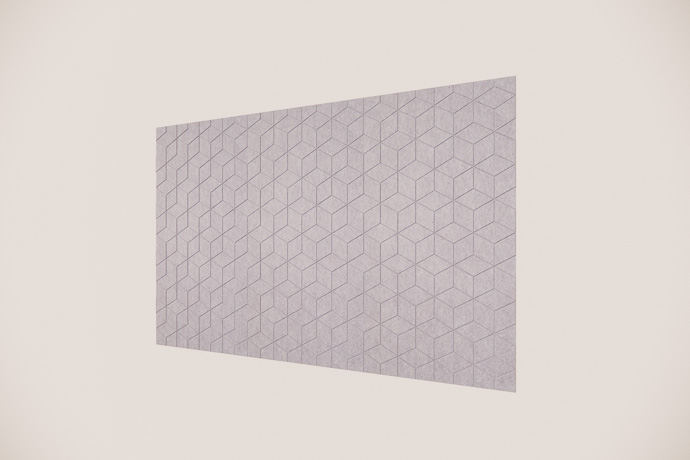

Cubes

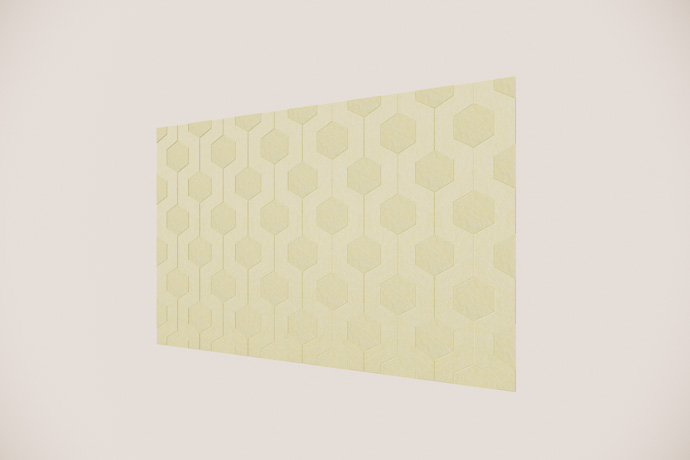

Hexaflux

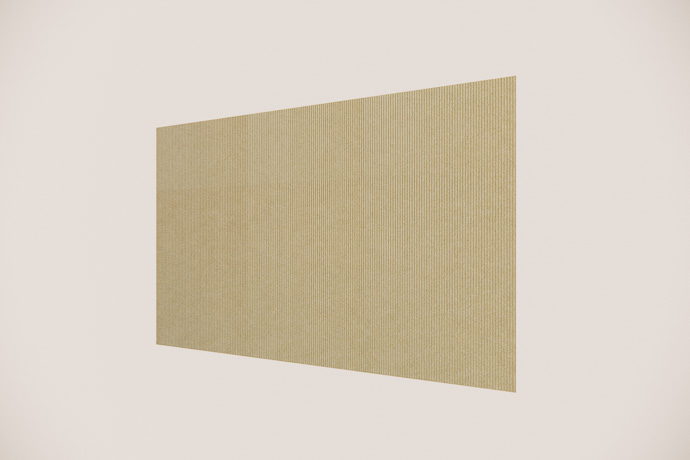

Groove V20

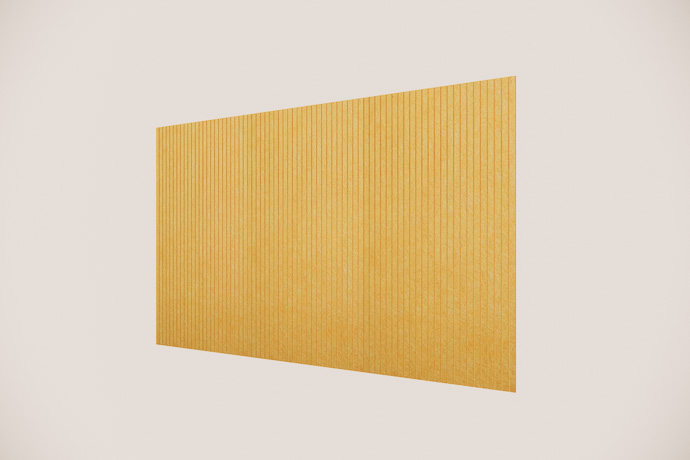

Groove V50

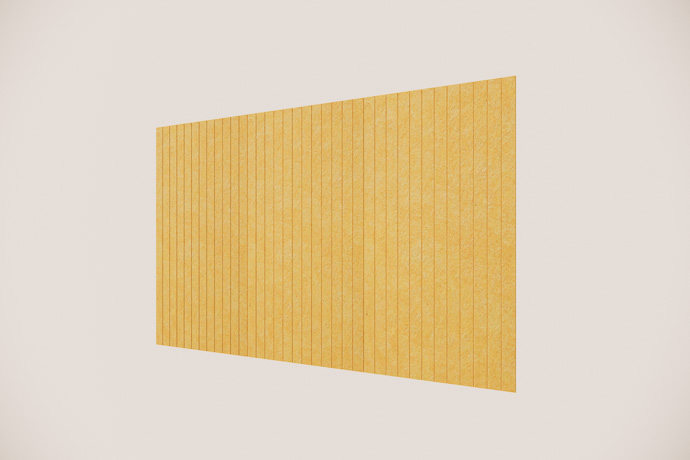

Groove V100

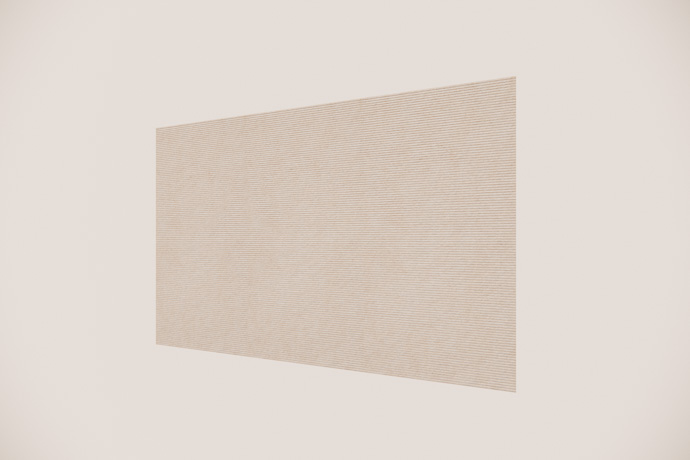

Grooves H20

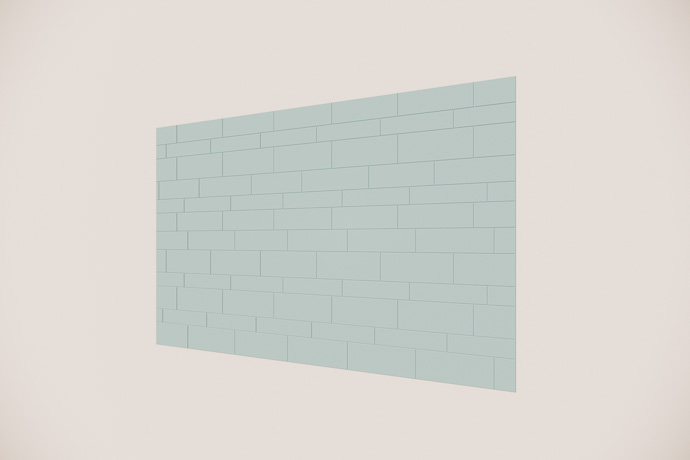

Bricks

Labyrinth D

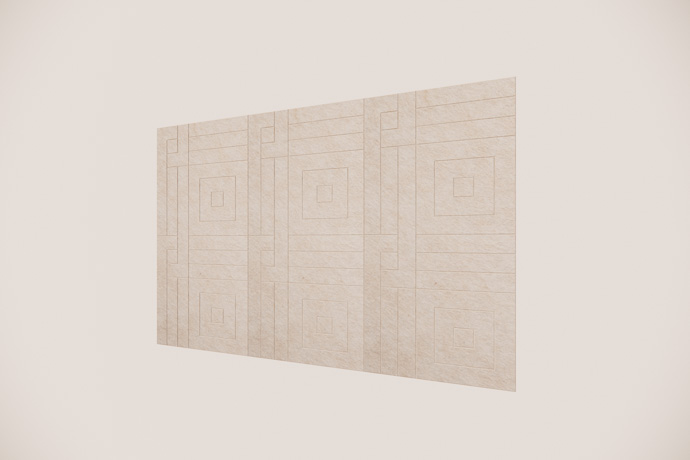

Labyrinth V

Waves 40

Waves 60

Grid 400

Bricks 240

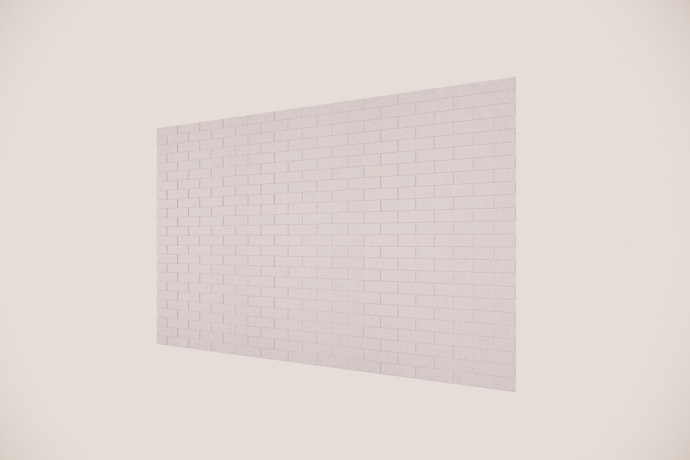

Horinzontal Bricks 240

Vertical Bricks 240

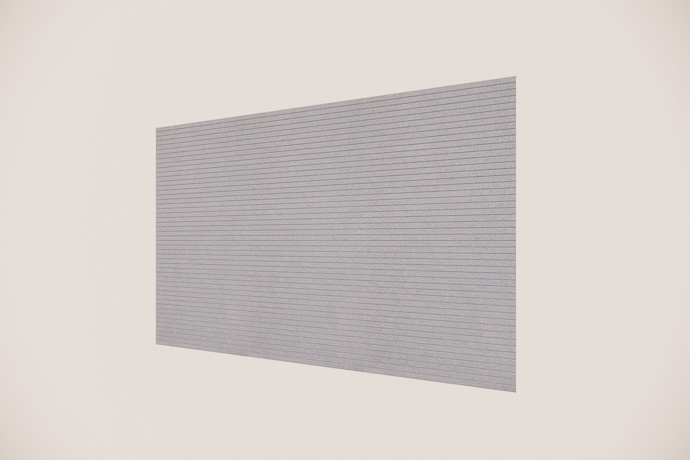

Groove H50

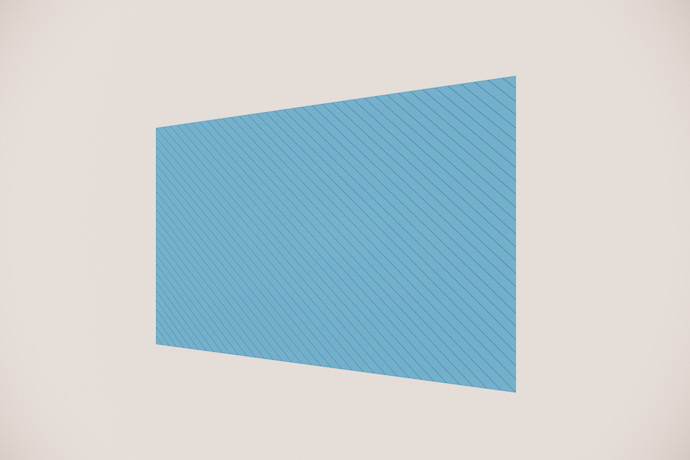

Grooves D100

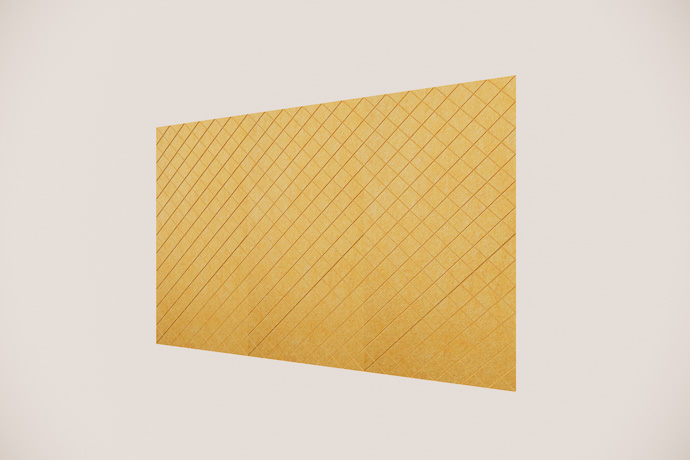

Checker 420

Chevron 840

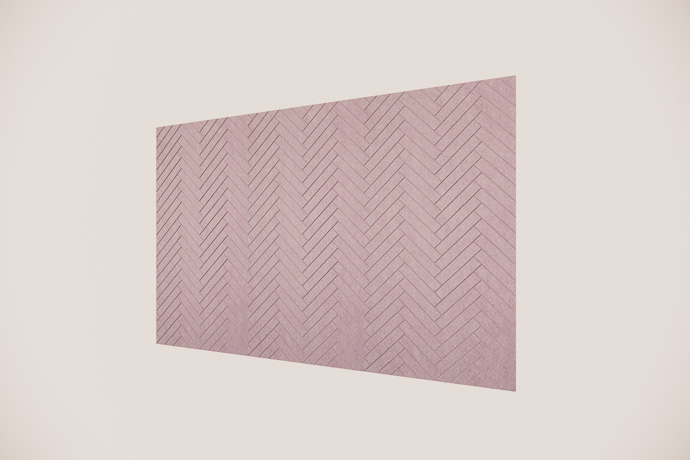

Chevron 420

Vertical Grooves

Square Grooves

Horizontal Grooves

Attention, available colors vary according to panel thickness.
Select the desired thickness to view colors usually in stock.
Feel free to contact us to confirm availability in the desired specifications and quantities.

Filter colors by thickness:

Arctique | Arctic

Mist

Pearl

Mercury

Dove Grey

Iceberg

Periwinkle

Brittany

Peacock

Crépuscule | Twilight

Carmine

Peach Rose

Cherry

Navy

Lilac

Wisteria

Gris Zen | Zen Grey

Alabaster

Marble

Koala

Squirrel Grey

Concrete

Sandstone

Charcoal

Asphalt

Onyx

Savane | Savannah

Dune

Ochre

Apricot

Havana

Chocolate

Mustard

Mucha Yellow

Ecru

Tropical | Tropical

Gourd

Strawberry

Honey

Lime

Eucalyptus

Genoa Blue

Fiji

Jade

Arctique | Arctic

Pearl

Mercury

Iceberg

Peacock

Gris Zen | Zen Grey

Alabaster

Marble

Charcoal

Onyx

Savane | Savannah

Dune

Havana

Mustard

Ecru

Tropical | Tropical

Gourd

Eucalyptus

Jade

Arctique | Arctic

Pearl

Mercury

Iceberg

Peacock

Gris Zen | Zen Grey

Alabaster

Marble

Charcoal

Onyx

Savane | Savannah

Dune

Havana

Mustard

Ecru

Tropical | Tropical

Gourd

Eucalyptus

Composition

100% polyester fiber (PET)

Dimensions

2400 × 1200 × 9 mm (±1 mm)

2800 × 1200 × 12 mm (±1 mm)

2800 × 1200 × 24 mm (±1 mm)

Other dimensions: contact us.

Thickness

9 / 12 / 24 mm

Weight

Weight of the raw panel before carving:

  • 9 mm: 1900 g/m² (±5%)
  • 12 mm: 2300 g/m² (±5%)
  • 24 mm: 3800 g/m² (±5%)

Recycling

100% recyclable.

Contains approximately 55% post-consumer recycled polyester fiber.

Fire Resistance

EN 13501-1:2018 Class B-s2,d0

Installation

  • Traditional silicone adhesive or specialized low-VOC acoustic panel adhesive.
  • Nail gun installation possible through the center of the grooves to reduce visible marks.

Environment

  • Low VOC emissions (CDPH v1.2-2017 tested)
  • French Indoor Air Quality rating: A+
  • 100% recyclable polyester fiber (PET)
  • Contains approximately 55% recycled polyester fibres
  • Supports LEED and WELL certification projects
  • Declare Label & Red List Free

Refer to the performance of standard panels for reference (the performance of the groove panels might be slightly different depending on the carving pattern chosen)

  • 9 mm panel: NRC 0.30 | αw 0.20
  • 12 mm panel: NRC 0.40 | αw 0.25
  • 24 mm panel: NRC 0.65 | αw 0.50

Tested according to ASTM C423-17 and ISO 54:2003.

Standard designs: see below.

Many other types of patterns can be customized on demand. Contact us to confirm the feasibility of your designs
