Folded U Baffles

Folded U Baffles combine acoustic performance with a distinctive architectural design. Their folded profile adds rhythm and depth to large interiors while reducing reverberation and improving comfort. Ideal for open-plan offices, hospitality venues and public spaces, they are suspended on PET or steel rails and can be customized in size, color and finish, including wood-grain effects for a warm and refined aesthetic.

Applications

• Open Offices
• Meeting Rooms
• Hotels
• Restaurants & Cafés
• Schools & Universities
• Commercial Spaces
• Reception Areas
• Public Interiors
• Large Open Ceilings

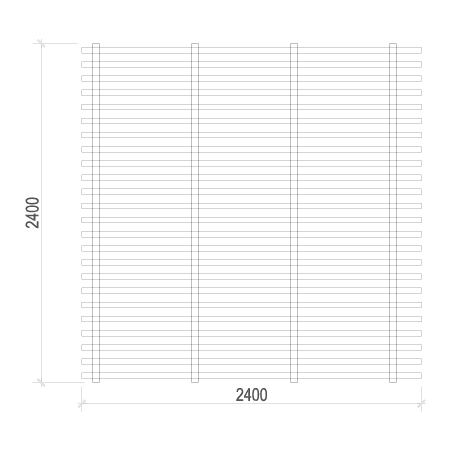

2400x2400mm Set

2400mm rails can be made from acoustic panels, depending on the context of the project

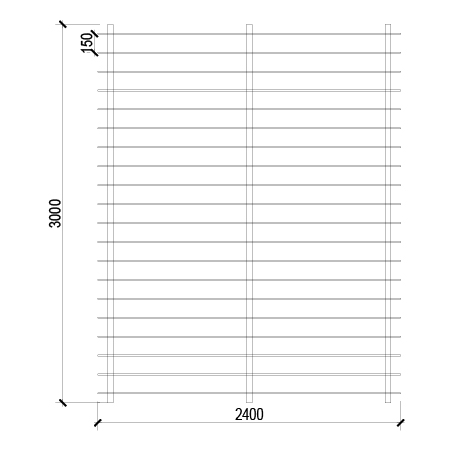

3000x2400mm Set

Only available in metal, custom-made

Attention, available colors vary according to panel thickness.
Select the desired thickness to view colors usually in stock.
Feel free to contact us to confirm availability in the desired specifications and quantities.

Filter colors by thickness:

Arctique | Arctic

Mist

Pearl

Mercury

Dove Grey

Iceberg

Periwinkle

Brittany

Peacock

Crépuscule | Twilight

Carmine

Peach Rose

Cherry

Navy

Lilac

Wisteria

Gris Zen | Zen Grey

Alabaster

Marble

Koala

Squirrel Grey

Concrete

Sandstone

Charcoal

Asphalt

Onyx

Savane | Savannah

Dune

Ochre

Apricot

Havana

Chocolate

Mustard

Mucha Yellow

Ecru

Tropical | Tropical

Gourd

Strawberry

Honey

Lime

Eucalyptus

Genoa Blue

Fiji

Jade

Composition

  • Baffles manufactured from 100% polyester fiber (PET)
  • Suspension rails available in steel or PET

Dimensions

Unfolded baffle: L 2400 × W 150 × H 9 mm

Folded baffle: L 2400 × W 40 × H 55 mm

Custom sizes available upon request.

Metal rails: maximum length 3 m

PET rails: maximum length 2.4 m

Weight

26 kg / set

Approximately 3.6 kg/m²

Recycling

100% recyclable.

Contains approximately 55% post-consumer recycled polyester fiber.

Fire Resistance

EN 13501-1:2018 Class B-s2,d0

Fixation rails to be specified/customized depending on the project requirements.

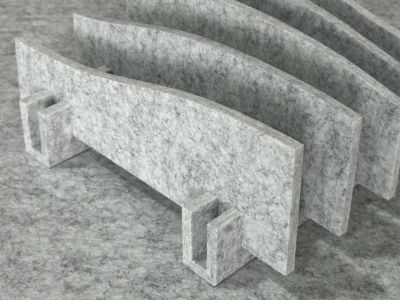

PET rails

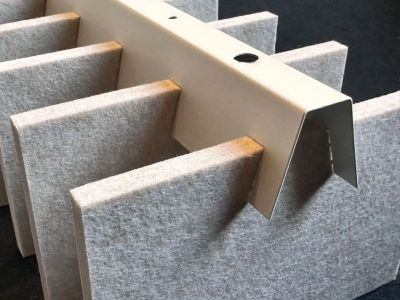

Metal rails

Available in monochrome (Refer to the full color palette),

or printed as wood grain (contact us to choose select the wood type)
